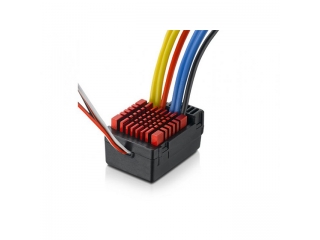

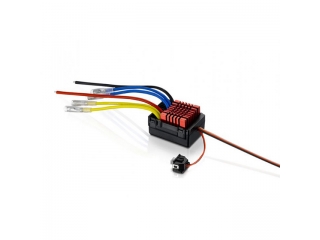

[HOBBYWING QuicRUN-880-Brushed]

Cost-performance focused
HOBBYWINGs QuicRUN series for radio-controlled cars.
As a series for beginners to intermediate users.
it is compatible with small to medium-sized models and is useful for all-round use.

With HOBBYWINGs cutting-edge technology and strict quality control.
it is a high-potential product with a focus on cost-performance that has all three qualities: high performance. high versatility. and low price that you can use for a long time.

[Features]

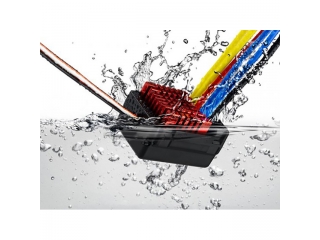

��All-weather waterproof and dustproof design
��Simultaneous output to two motors
��Small size module with built-in capacitor
��Equipped with 4 driving modes: forward/rear mode (with brake). forward (with brake). forward/rear mode (without brake). boat
��High current support
��Excellent output capacity with built-in switch mode BEC
��Easy-to-use automatic throttle range calibration

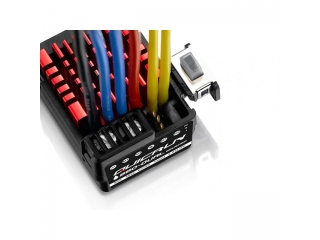

��ESC parameters can be easily set with a changeover switch
��Various protection functions (battery low voltage protection/overheating protection/throttle signal loss protection)

[Specifications]
Forward output 60A continuous / max. 360A
Reverse output 30A continuous / max. 180A
Battery LiPo: 2-4 cells. NiMh: 5-12 cells
BEC output 5V/3A (switch mode)
Forward resistance 0.001��
Reverse resistance 0.002��
Compatible brush motor [Lipo: 2 cells. NiMh: 6 cells] 540/550/775 size. up to 12T. RPM < 30000 @ 7.2V
[Lipo: 3 cells. NiMh: 9 cells] 540/550/775 size. up to 18T. RPM < 20000 @ 7.2V
[Lipo: 4 cells. NiMh: 12 cells] 540/550/775 size. up to 24T. RPM < 15000 @ 7.2V
Compatible models: 1/8 & 1/10 scale
Touring car. buggy. short cruise truck. monster. truggy.
Rock crawler. tank. boat
Size: 46.5 mm * 36.0 mm * 26.3 mm
Weight: 73 g
PWM frequency: 1KHz
Cooling fan included. Powered by receiver (LiPo: 2-3 cells)

Driving modes: forward/reverse/brake. forward/brake. forward/reverse (crawler). boat.

BEC built-in type
