Chassis Dimensions: Overall Length (M & L): 332mm
*Body. motor. tires. R/C mechanism. battery. etc. are not included in this kit.
*This product contains the same content as the ITEM 84436 1/10 RC M-07R Chassis Kit released in 2019.

Equipped with parts carefully selected by TRF to enhance driving performance

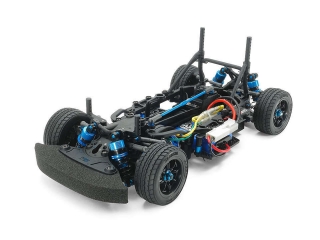

The compact M-07 CONCEPT chassis. designed with front-wheel drive for nimble handling and ease of maintenance in mind.
features carefully selected optional parts based on TRFs extensive racing expertise.
This cars competitive potential has been further enhanced. The high-traction lower deck. which generates effective torsion and improves road-holding performance. is combined with a dedicated carbon battery holder.
The suspension is tuned with TRF special dampers. reinforced suspension arms and uprights. a rear stabilizer. and more.
Perfect for special events and low-grip surfaces.
In addition to an oil-filled gear differential and full bearing specifications. the drivetrain also features a double cardan drive shaft. aluminum differential joint cups. and hard-coated aluminum pinions for increased efficiency.

Major Features

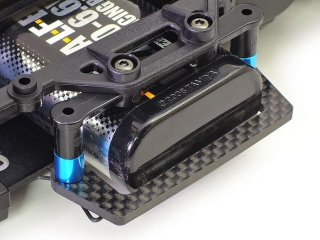

��Carbon Battery Holder
��Rear Stabilizer

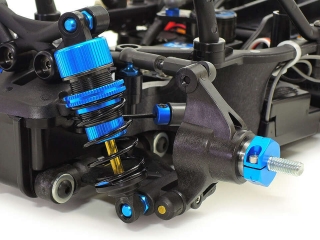

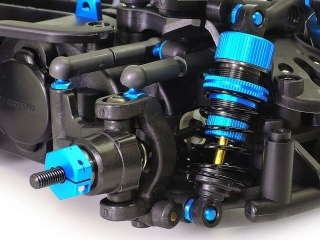

��TRF Special Dampers (Hard Black Coat) x 4
��42312 Double Cardan Drive Shaft (33 Size. x 2)
��OP.1812 M-07 CONCEPT High-Traction Lower Deck
��OP.1811 M-07 CONCEPT Reinforced D Parts (Suspension Arms) x 2
��OP.1810 M-07 CONCEPT Reinforced C Parts (Uprights) x 2
��OP.1756 3x106mm Aluminum Turnbuckle Shaft
��OP.1532 TA06 Gear Differential Aluminum Differential Joint Cups (x 2)
��OP.823 Clamp-Type Aluminum Wheel Hub (5mm Thick)
��OP.917 ��2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension
��OP.851 46mm Titanium Coated Suspension Shafts (x 2)
- OP.509 06 Fluorine Hard-Coated Aluminum Pinion (for 20T/F201)
- Full Ball Bearings
- High-Torque Servo Saver (Black)

Basic Specifications
- Chassis Length: 332mm (including bumper)
- Chassis Width: 164mm
- Wheelbase: Available in two types: 239mm and 225mm
- Frame: Upper and Lower Split Monocoque
- Drivetrain: Front Midship Motor. Front-Wheel Drive
- Differential Gear: Oil-Filled Gear Differential
- Steering: 3-Piece Tie-Rod
- Suspension: 4-Wheel Double Wishbone
- Dampers: TRF Special Dampers (Hard Black Coat)
- Gear Ratio: 9 Ratios from 7.22:1 to 4.81:1 (5.78:1 when using the kit-included 20T pinion)
- Speed controller = ESC specification (sold separately)

Items to be purchased separately
- M Chassis body
- Type 540 motor
- Tires
- Finespec 2.4G Electric RC Drive Set
- Transmitter power supply
