To the control unit for controlling the LED. is the basic set of LED2 lights back fire for LED1 lights for LED2 lights and brake lights for the headlights were included.
[Body size / weight] W31 �� D30 �� H10 / 7.4g

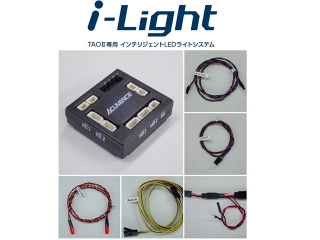

Set contents
LED control unit body
1
Brain unit connection cable
1
Headlight for a full-color LED (2-lamp one set)
1
LED brake light (2 lamps 1 set)
1
Backfire for full-color LED (1 lamp)
1
LED light system dedicated RX branch cable
1


This product. by a dedicated controller [TAO?] Earia emission shell of various light - Kala - in addition to the change of timing and strobe effect. such as a point off time. a variety of lighting control and configuration of. and can be set in the wireless communication . not so far is Lightning system.

Various lights on in conjunction with the throttle operation. achieve off loose point of the actual vehicle similar to the control circuit. In particular. for the headlight backfire employs a full-color LED. and was made possible a variety of color developed with one lamp. Because of this troublesome retrofit for the color change is also not necessary. you can enjoy a [variety of dress-up with light] to suit your mood.


Before you start using the i-Light. please check the version of the following products
i-Light is available at the following version.
AIRIA: Ver.4.2 or later
TAO?: Ver.1.3 or later
Blaine unit: Ver.2.0 or later ��
�� The version up of the brain unit. you must have the brain unit dedicated updates USB adapter.


Feature


[Multi-Lightning dress-up system (MLDS)]

· TAO? can be wireless in Lightning settings using the Bluetooth by.
Head brake hazard Each light. was reproduced the off such loose terms as of the actual vehicle.
• Each LED light is in accordance with the emission characteristics. it can be set in conjunction with the throttle.

[Headlight (full color LED ��)]

Full-color LED adoption. It was it possible to color the color of 15 colors. including off.
· 2 color is selected. it is possible to freely set the alternately flashing color from 15 �� 15 = 225 patterns.
· Two colors flashing timing of I can be set from 10 species.
· Vehicle after the stop. I can time the four patterns set up to automatically turn off the light.

[Brake light (red LED)]

· ON / OFF flashing at full brake (stroboscopic effect). and I can set the blinking period.
- After a full brake. you can set the time from returning the throttle to neutral until the brake light turns off.
· Vehicle after the stop. you can set the time until to automatically turn off the brake light.

[Backfire for muffler (full color LED ��)]

Full-color LED adoption. It was it possible to color the color of 15 colors. including off.
· 2 color is selected. it is possible to freely set the alternately flashing color from 15 �� 15 = 225 patterns.
Flashing period of two colors can be set from 11 species. has achieved the production of no realistic backfire so far.

[Hazard light (Orange LED)]

• On and select the speed of the turn off from the four patterns is possible.
- At all times in addition to the flashing on and off. after the stop. you can set the time until the start of automatic flashing.

[Backlight (white LED)]

Back when the white LED will light.

�� full-color LED. you may see the color better is different due to the difference of the optical axis as its characteristics.
