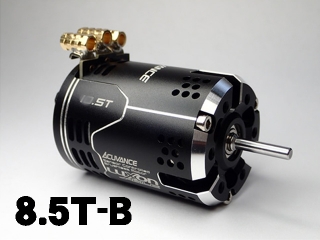

Bargain Shipped on January 6 LUXON AGILE 8.5 T - B (Black)

JAN code:
4541283604876
Item code:
4876
Maker price:
\15,984 JPY
Sale price:
\9,800 JPY
Manufacture:
ACUVANCE
Weight:
225g
Categories:
Parts Bargain Item/Brushless Motor
Features

Worlds first [M.F.C.S.] with RC motor

Conventional brushless motor changes the magnetic force as a result by changing the distance between the rotor and the motor pipe. depending on the rotor diameter. and produces its characteristics as rotating type or torque type.
However. because the volume and weight of the rotor itself increases and decreases due to the change in the rotor diameter. there was a problem that the motor balance changed before the characteristics of rotary type and torque type.
[AGILE (Agile)]. with M.F.C.S installation. we succeeded in changing only the motor characteristics with option rotor (* 1) with the same diameter and volume.
(For this reason. the marking of the rotor shaft is not the conventional rotor diameter. it is the LV value notation indicating the rotation type and torque type.)
We have made it possible to change to rotation type or torque type without losing the balance of weight. moment etc. of the standard motor set to the optimum value.

Sharp design that gives high quality and high fighting power with a simple line configuration

It adopts its own porous structure and a cooling hole cut in boldly in the case of aluminum scraping out. realizing high efficiency and cooling performance.

Customizable body color

Optionally developed a transformer (TF) jacket dedicated to AGILE that can freely customize the color of the upper and bottom cases and end bells. (* 1)
You can direct originality according to the chassis mounted and drivers preference.

Aluminum machined original new [Tri-Blade] loaded

Larger and lighter rotor blades that generate airflow inside the motor.
It achieved both higher cooling capacity and rotational performance.

Adoption of large diameter bearings

The large bearing type (outer diameter 12.700 mm / inner diameter 4.762 mm) is adopted as the front bearing. and the rotation stability and the durability are improved.

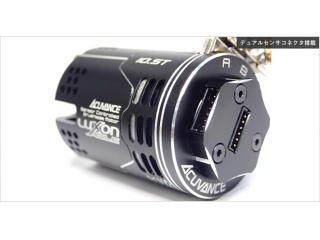

Dual sensor connector adoption

Adopting a dual sensor connector system with two sensor connectors mounted.
By arranging the connectors in different directions. we improved the flexibility of the layout.

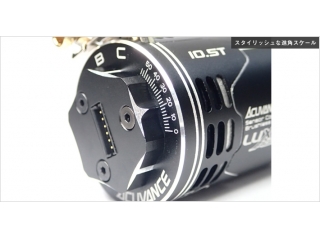

Expanded range of advance adjustment by slip way system

Expansion angle adjustment range expanded to 55 .
It realized further high speed.

Shorter motor case length

Motor case length reduced by 1.5 mm (compared to our company).
The degree of freedom of mounting on the vehicle has improved.

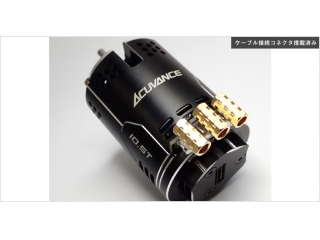

Terminal connector installed

The connector (OP - 87513) is already installed in the factory shipment state.
It eliminates the need for soldering work to the terminal part that causes the failure and reduces blow by heat conduction.

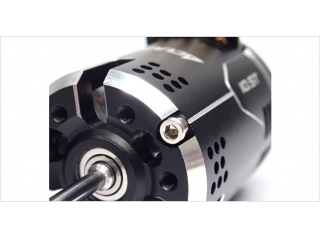

Hexagon type is adopted for all screws

We adopted a hexagonal type screw which is most frequently used for assembling RC cars.
