M-CONSEPT YD-2 (S.W.B.Conversion kit)

JAN code:
4571344919700
Item code:
0489-FD
Maker price:
\15,120 JPY
Sale price:
\9,800 JPY
Manufacture:
WRAP-UP
Weight:
120g
Categories:
YD-2 chassis etc/YD-2 SP set
Have fun with M-CONCEPTS.W.B.
Newly released short wheelbase conversion for YD-2.

Multi-designed for both YD-2E / YD-2S and if you have YD-2
Easy conversion.

Also. if the VX-DOCK specification released at the same time. VX-DOCK around the front
By building in the servo. extra mechanical space can be secured.

The body is recommended to be 225mm. and long bodies can be mounted depending on the device.

Front 50mm suspension shaft included By expanding the front and rear suspension mounts.
YD-2 standard suspension arm as well as wrap-up Y arm. etc.
Compatible with other brands of suspension arms. With adjustment spacer.

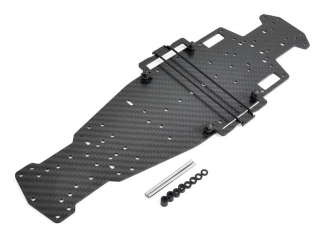

Commodity composition:
¢£ 2.5mm graphite main chassis (pure carbon)
¢£ Graphite battery holder
¢£ 3x50mm stainless steel suspension shaft (for front)
¢£ 3mm Duracon spacer set

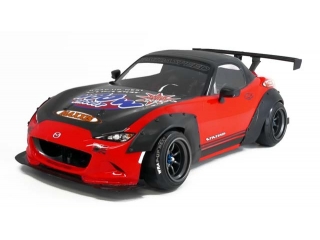

Body mounting example: The photo shows Tamiyas roadster and wide fender.
The wheelbase is 225mm and the body width is 180mm front and 185mm rear.

Use suspension mount reference example:
FF / FR: 39.5mm
RF / RR: 48.7mm / 49.6mm
Or RF / RR: 48.0m / 48.7mm
Both toe-in is about 0.5 degrees
Use suspension arm reference example:
Front: Y2-008FLS Front Short Lower A Arm for YD-2
Rear: Y2-008RS Short rear suspension arm for YD-2 series
