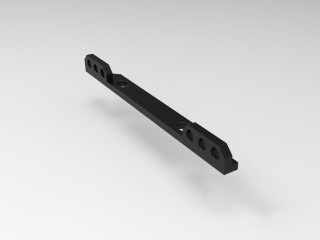

Variable arm base (for Jaeger & YD-2E & RR)

JAN code:
4582302473295
Item code:
ART2647
Maker price:
\2,570 JPY
Sale price:
\2,220 JPY
Manufacture:
RC-ART
Weight:
20g
Categories:
Drift Accessories/RX-12J CE-RX Suspension relationship/YD-2 suspension
Convenient item for holding the toe rod of the rear variable arm

Can be installed by tightening together with the suspension block.
Adjust the height using a spacer etc. for mounting.

* YD-2 suspension arm and MRT knuckle are used without processing.
Because of the axle specifications for YD-2. a 2.5mm thick collar with an inner diameter of 10.1 and an outer diameter of 12 is used inside the axle.
(Completed with each companys A arm. each companys AWD knuckle. etc.)

reference

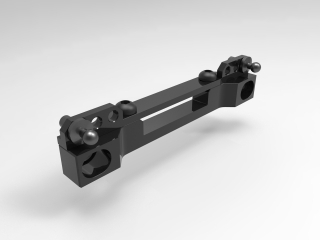

YD-2 Short Rear Suspension Arm Suspension Block (for Jaeger)

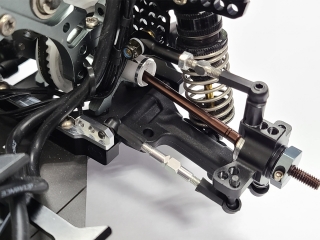

Installation example
Attached to the mounting hole of the suspension block with a 3 x 5 button screw

reference
Aluminum rear suspension mount for YD-2 D

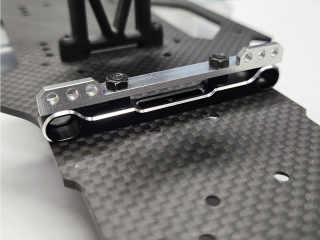

Installation example

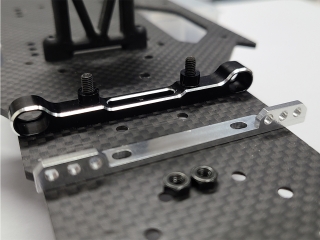

Attach the suspension block to the chassis with 3 x 15 countersunk screws
Put a 3.5mm collar on the suspension block and attach it with a nut from above
Note: The explanation image uses silver parts for easy viewing. but this product is black.
