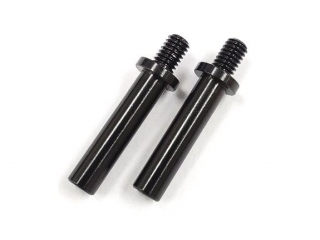

Aluminum knuckle stopper (3mm 2 pieces)

JAN code:
4582586510143
Item code:
RD-003-30
Maker price:
\561 JPY
Sale price:
\570 JPY
Manufacture:
ReveD
Weight:
20g
Categories:
Type C Suspension Related/YD-2 suspension
Adjust the angle of steering without interrupting the movement of the suspension!
Aluminum knuckle stopper 3.0mm / 3.5mm is now available!

RWD drift cars generally use a knuckle stopper (steering stopper) to adjust the maximum turning angle. but when maximizing the turning angle. many people use M3 set screws.
Even with the M3 set screw. the function of the stopper works. but the surface of the screw will hinder the movement of the suspension at the maximum turning angle.

This is where the [Aluminum Knuckle Stopper] comes into play!
Unlike the M3 set screw. the surface has no irregularities. so it does not hinder the movement of the suspension even at the maximum turning angle.
Furthermore. since it is made of lightweight aluminum. it is also effective in reducing weight by replacing it with an iron set screw.

The lineup consists of a 3.0mm and 3.5mm diameter part.
In addition to 3.0mm which realizes the maximum steering angle. 3.5mm which is an option when you want to control the steering angle only slightly is prepared.
3.5mm is effective when the commercially available 4.0mm has insufficient steering angle and 3.0mm has too much angle!

If you are currently using an M3 set screw as a stopper or want to increase the steering angle more than a 4.0mm stopper. please try it.

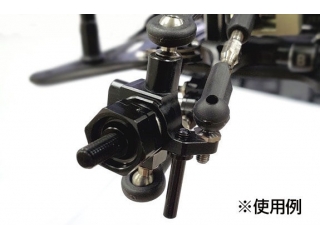

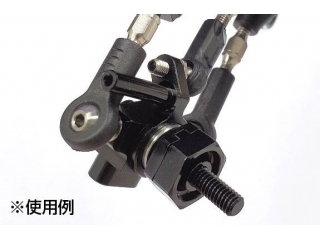

In addition. the compatibility with Rêve D suspension parts [RD-001: ASL front knuckle] and [RD-002: ASL front lower arm] is excellent. so we recommend you to use it as a super set!


RD-003-30: Aluminum knuckle stopper for RWD drift (3.0mm. 2 pieces) 520 (excluding tax)
RD-003-35: Aluminum knuckle stopper for RWD drift (3.5mm. 2 pieces) 520 (excluding tax)


Screw: M3. length 4.5mm
Pedestal diameter: 5.5mm
Length from base to tip: 16mm
Hexagonal hole dimensions: 1.5mm across flats
* Please check the dimensions of the knuckle. lower arm. etc. currently used before purchasing.
