By offsetting the bearing position by 2mm toward the wheel center. the rotational axis is closer to the center of the wheel. improving rotational accuracy.
It also reduces the load on the bearing. improving front rolling at deep angles.

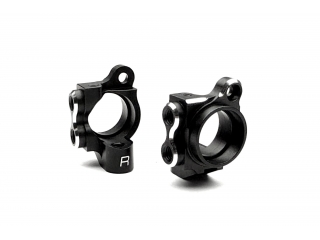

The knuckle itself features a two-piece structure with a plate attached to the top. and by changing the plate parts (HIKARU. AKIRA. Type US). you can try out settings that suit various riding environments.

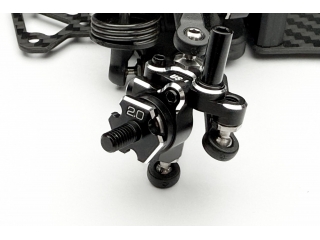

By simultaneously installing the D1-MK-B2 aluminum front axle (2.0mm type). you can correct the 2mm increase in knuckle scrub and match it to the Multi-Select front knuckles basic offset value of 4.0mm.
Furthermore. by combining the conventional Multi-Select knuckle with a 2.0mm type axle. you can also use a wheel with a large offset. such as a deep rim. on the front to improve performance while prioritizing looks.
*Please note that there are limits to the wheels that can be used.
Give the RDXs front end a further evolution with the aluminum Multi-Select front knuckle (2.0mm offset type) and aluminum front axle (2.0mm type) a try!
