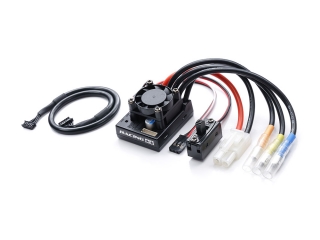

Brushless ESC 04SR with sensor

JAN code:
4950344450701
Item code:
45070
Maker price:
\8,424 JPY
Sale price:
\6,430 JPY
Manufacture:
TAMIYA
Weight:
100g
Categories:
Brushless ESC
[ESC that brings out the performance of brushless motors with sensors]
It is an ESC (speed controller) that supports not only Tamiya brushless motor sensor (TBLM series) but also brush motors for 23 turns or more. A cooling fan is standard equipment to reduce heat generation. Delicate control can be performed according to the throttle operation. creating a mild and smooth operation feeling from low speed to high speed. Including high point setting. neutral brake setting. brake setting. back setting. battery cutoff setting. motor setting can be set up individually. It is also equipped with two types of protection functions: temperature protection and overcurrent protection.

[Basic specifications]
Continuous maximum current 75A
Output: 100% forward. 50% backward
Input voltage 6.6 to 7.2V
Size 41.5 x 33.4 x 27 mm
Weight 56g (including cords)
Equipped with cooling fan as standard
