1/24 Comical Wheely Lunch Box Mini (Completed model)

JAN code:
4950344574100
Item code:
57410
Maker price:
\21,384 JPY
Sale price:
\13,860 JPY
Manufacture:
TAMIYA
Weight:
2,000g
Categories:
Electric car (pre-assembled)/EP OFF ROAD KIT
[Cute size 4WD car that can be played immediately and can run wheelie]

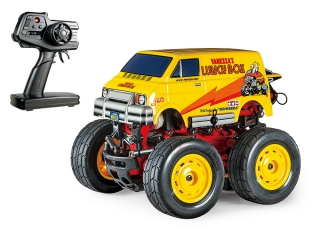

A 1/24 scale completed electric radio control car with a deformed lunch box. familiar with the Mini 4WD and RC.
A compact size with a total length of 190mm that can be played anywhere. indoors or outdoors.
Painted and marked body is made of polycarbonate that is light and shock resistant.
The appearance of lifting the rear hood enhances the coolness. and the parts that give the image of two exhausts also produce fun.
The SW-01 chassis with gear drive 4WD is a bright red monocoque part.
A colorful composition with a yellow body. yellow wheels and black tires.
RC mechanism is Fine Spec 2.4G R / C Set (with TRE-01).
Equipped with a TRE-01 unit that integrates a receiver and ESC (Electronic Speed ​​Controller). it can run on 4 AA alkaline batteries. and LF1100 batteries can also be used.

[Equipped with 4WD gear drive and SW-01 chassis packed with fun driving]
This is a 4WD chassis that is packed with fun in a compact A5 size car body that is 190mm long and 150mm wide.
A 370 motor is set in the center of a slim and strong monocoque frame. and a gear drive 4WD that transmits power back and forth with a gear is adopted.
Combined with a large tire with a diameter of 70mm. it realizes powerful driving.
In addition. a heavy battery is mounted on the rear upper part of the vehicle. Wheelies can be run just by making a quick start.
The suspension is a strut type four-wheel independent with a coil spring.
A mechanism that links the suspension upper with left and right arms and interlocks with the steering wheel is adopted.
Suppresses the roll during cornering. combined with the effect of the differential gears installed at the front and rear. it demonstrates outstanding turning performance.
No matter where you run from indoors to the outdoors.

[Use 2.4G radio to easily play with multiple units]
In addition to the painted body and finished body. a wheel trigger type transmitter that is easy to control is also included.
The RC mechanism uses a 2.4GHz radio set that can be easily enjoyed with multiple units without the need for band adjustment such as crystal replacement.
2.4GHz. which is also used for wireless LAN of computers. has one-to-one correspondence between transmitter and receiver (body). so there is no worry of interference. and the transmitter and receiver are already paired. There is no need for troublesome setup work.
The transmitter is a wheel trigger type that is ideal for driving a car.
With the switch on the back. you can switch between two levels of normal power with one push.
In addition. the thickness of the grip can be adjusted by attaching and removing the grip cover. and the trigger cover can also be attached and detached. The grip is easy to grip even with a small hand. making it easy to operate the back.

[Basic specifications]
Length 190mm. width 150mm. height 140mm
Wheelbase 92mm
Tread = 122mm before and after
Tire Width / Diameter: 28mm / 70mm for both front and rear
Frame = Monocoque type
Drive system = Gear drive 4WD
Differential gear system = Planetary type
Steering tie rod = 3 split
Suspension = both front and rear McPherson strut type
Gear ratio = 21.88: 1
Speed controller = ESC specification that allows smooth speed adjustment for both forward and backward travel
Motor = 370 type

[Separately required items]
4 Tamiya AA batteries for traveling. or Tamiya LF-1100 6.6V Racing Pack (M size)
4 AA batteries for transmitter
