[Birth and Raising Circuit]

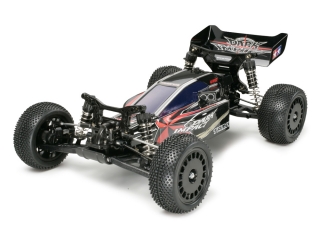

Developed from the data accumulated in many actual battles by the hands of Works drivers from the prototype stage. This is an assembly kit for an electric radio control buggy created to fight off-road racing. While inheriting Tamiyas traditional shaft drive 4WD. the development concept was to improve the efficiency of the drive system. optimize the weight balance. and secure a sufficient suspension stroke. In addition. the compact chassis realizes a slim and firm body. In contrast. the rear wing stabilizes the rear by creating a large downforce that integrates the wing tip plate. The tires are equipped with High Density Spike K. which provides good grip on all road surfaces.
[DF-03 chassis with traditional shaft 4WD polished]

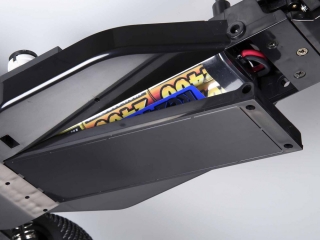

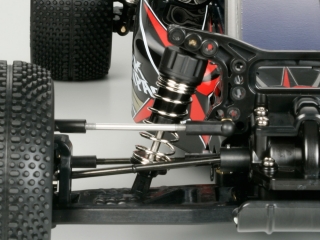

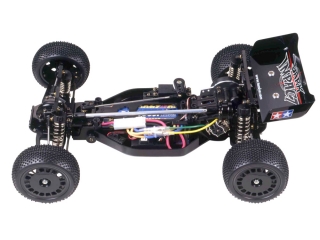

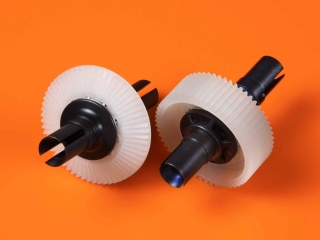

Uses a monocoque tab frame with high torsional rigidity. The battery is centered. the RC mechanism is arranged on the left and right. and the weight balance is excellent.By putting the heavy items in the center. such as putting the oil damper in the wheel base. high running stability and cornering performance are demonstrated. I will. Compact front and rear gearboxes with built-in high performance ball diff. Especially at the front. the bevel gear at the tip of the propeller shaft directly meshes with the ball diff carrier. eliminating secondary deceleration such as counter gear. The drive efficiency has also been improved by placing the propeller shaft at the shortest distance and installing a ball bearing as standard equipment. In addition. the 4-wheel double wishbone suspension uses long arms with excellent ground contact. Stainless steel pins are used on the arm shaft to create smooth movement. and a small upright is installed to reduce unsprung weight. In addition. the mounting position of the upper arm and oil damper can be selected. allowing a wide range of settings.
[Available separately]
�� RC mechanism: Fine spec FM electric RC drive set or 2-channel R / C system with FET speed controller (ESC)
�� Batteries: Tamiya 7.2V batteries and 8 AA batteries for transmitter
