Grasshopper 2 (2017)

JAN code:
4950344586431
Item code:
58643
Maker price:
\8,640 JPY
Sale price:
\5,600 JPY
Manufacture:
TAMIYA
Weight:
1,600g
Categories:
EP OFF ROAD KIT

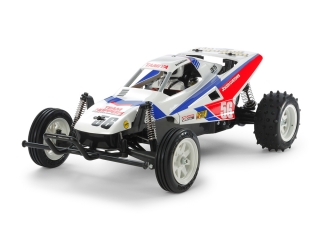

Total length = 400 mm The picture shows the kit assembled and painted


Reprinted version of 2 WD Buggy for introductory appeal with light running performance
The basic composition of the electric radio control car assembly kit. Grasshopper II released in 1988 was reprinted as it was.
Single-seater · Racing Body with a motif as a motif is made of impact-resistant styrene resin with high sense of scale.
It is colorfully finished with a sticker for marking. it also enhances the reality of running with a driver doll.
The chassis features a simple configuration and easy to assemble.
With a 380 motor. running time is comparatively long. and speed is easy to handle.
In addition. it is the one most suitable for introducing RC car which can install various performance up parts such as CVA oil damper and more powerful 540 motor. and can enjoy the race.

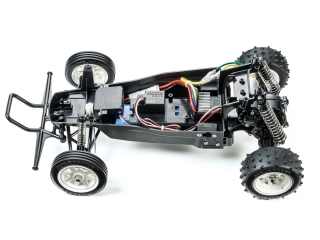

Rear wheel drive chassis easy to assemble with simple configuration
A tough chassis that can withstand hard running on off road is an ABS resin bathtub type.
We adopted engineering plastics with durability and flexibility for suspension arms and gear boxes. including frames. and realized a lightweight and high-strength car body structure.

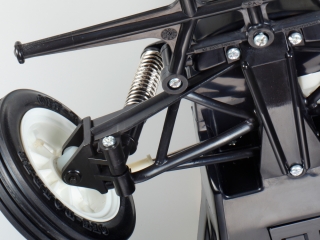

Around the foot. the front is a swing axle independent type with a coil spring. the rear is a rolling rigid axle equipped with a coil spring.

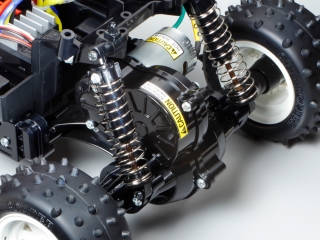

The gearbox integrated with the rear axle case is a sealed type that shuts out the intrusion of sand and pebbles that are inherent in off road driving.
It also has a built-in differential gear that produces smooth cornering.
Wheel is lightweight one piece type both front and back. The front wheels were equipped with 4-rib grooved tires with excellent directionality and the rear wheels were fitted with spike tires that showed enough grip power.


Basic Specification
Overall length 400 mm. full width 223 mm. total height 136 mm. body weight about 760 g. (RC mecha · battery not included)
Wheel base 253 mm
Tread = front and rear 186 mm
Tire width / diameter = front 19 mm / 74 mm. rear 36 mm / 82 mm
Frame = ABS resin made bathtub type
Drive system = rear wheel drive
Differential gear method = 3 bevel differential
Steering tie rod = 2 split
Suspension = front / swing axle left right independent. rear / rolling rigid
Gear ratio = 14.7: 1
380 type with motor
Speed controller = ESC specification (sold separately)


What you need separately
FineSpec 2.4G electric RC drive set
Power supply for transmitter (4 AA batteries)
