Comical Mighty Frog (WR-02CB chassis)
- JAN code:
-
4950344586738
- Item code:
-
58673
- Maker price:
-
\15,400 JPY
- Sale price:
-
\9,800 JPY
- Manufacture:
- TAMIYA
- Weight:
- 3,000g
- Categories:
- EP OFF ROAD KIT/EP OTHER KIT
[Yukai and cute fun play friends! ]

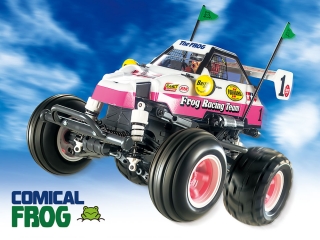

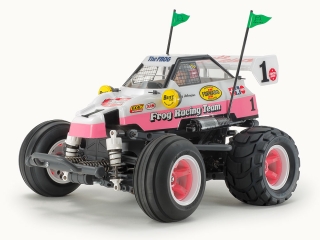

Contrary to the cute frogs trademark and frog name. the 2WD buggy. Mighty Frog. has gained popularity due to its original body structure and high performance.
This is an assembly kit for an electric radio control car mounted on a rear-wheel drive chassis equipped with bubble tires. with the body of the original design Mighty Frog resembling the image of an actual single seater racing buggy.

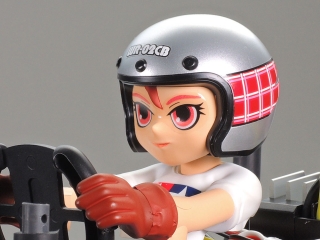

The body is made of transparent polycarbonate. and a driver doll in a T-shirt wearing a helmet is also included.
The chassis is a WR-02CB with a wide tire layout and a vertical running battery at the rear of the vehicle.
You can play anywhere from the paved road to the bumpy off-road. and you can also run a wheelie with the front wheels lifted by simply grasping the throttle lever of the transmitter.
Furthermore. it is a fun playful friend full of fun that you can enjoy performance improvement and setting with abundant optional parts for WR-02CB.
[Rear wheel drive WR-02CB chassis packed with fun to run]

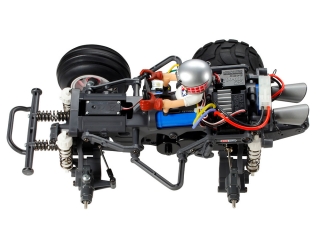

Chassis adopts WR-02CB based on WR-02 of rear wheel drive.
By devising the mounting position of the motor and battery. it is easy to run and easy to wheelie. so you can choose where to run from on-road to off-road.
Also. the gear case that is a little cumbersome to assemble is also the point that it is completed with the motor attached.
The suspension is equipped with a CVA oil damper on the long suspension arm. enabling stable running even in rough off-road conditions.
In addition. on the side of the chassis. a side guard that protects the motor from accidental falls and draws out the buggy character is set.

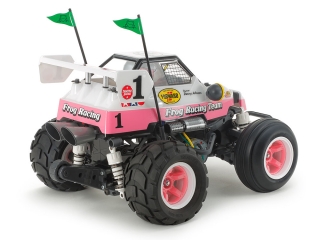

The wheelie bar attached to the rear part not only prevents the wheel from falling when it is wheeled. but also allows the wheelie to be adjusted by changing the mounting angle.
In addition. the two-piece structure is a wheel with a colorful combination of white and pink that matches the body color.
The tires are equipped with a highly stable rib pattern on the front and a round block with grip on the rear to enhance the comic mood.
[Basic specifications]
�� Overall length 356mm. overall width 244mm. overall height 195mm
�� Wheel base 170mm
�� Car weight = 1280g (excluding RC mechanism and battery)
�� Motor = 540 type
�� Drive system = Rear wheel 2 wheel drive
�� Tire Width / Diameter: Front 46 / 95mm. Rear 56 / 98mm
�� Tread = Front: 189mm. Rear: 186mm
�� Frame = resin monocoque type
�� Differential gear system = 3 bevel differential
�� Steering tie rod = 2 split
Suspension (both front and rear) = double wishbone
�� Damper = CVA oil damper
�� Gear ratio = 1: 18.3
[Separately required items]
�� Fine Spec 2.4G Electric RC Drive Set
�� 4 AA batteries for transmitter
Contrary to the cute frogs trademark and frog name. the 2WD buggy. Mighty Frog. has gained popularity due to its original body structure and high performance.
This is an assembly kit for an electric radio control car mounted on a rear-wheel drive chassis equipped with bubble tires. with the body of the original design Mighty Frog resembling the image of an actual single seater racing buggy.
The body is made of transparent polycarbonate. and a driver doll in a T-shirt wearing a helmet is also included.
The chassis is a WR-02CB with a wide tire layout and a vertical running battery at the rear of the vehicle.
You can play anywhere from the paved road to the bumpy off-road. and you can also run a wheelie with the front wheels lifted by simply grasping the throttle lever of the transmitter.
Furthermore. it is a fun playful friend full of fun that you can enjoy performance improvement and setting with abundant optional parts for WR-02CB.
[Rear wheel drive WR-02CB chassis packed with fun to run]
Chassis adopts WR-02CB based on WR-02 of rear wheel drive.
By devising the mounting position of the motor and battery. it is easy to run and easy to wheelie. so you can choose where to run from on-road to off-road.
Also. the gear case that is a little cumbersome to assemble is also the point that it is completed with the motor attached.
The suspension is equipped with a CVA oil damper on the long suspension arm. enabling stable running even in rough off-road conditions.
In addition. on the side of the chassis. a side guard that protects the motor from accidental falls and draws out the buggy character is set.
The wheelie bar attached to the rear part not only prevents the wheel from falling when it is wheeled. but also allows the wheelie to be adjusted by changing the mounting angle.
In addition. the two-piece structure is a wheel with a colorful combination of white and pink that matches the body color.
The tires are equipped with a highly stable rib pattern on the front and a round block with grip on the rear to enhance the comic mood.
[Basic specifications]
�� Overall length 356mm. overall width 244mm. overall height 195mm
�� Wheel base 170mm
�� Car weight = 1280g (excluding RC mechanism and battery)
�� Motor = 540 type
�� Drive system = Rear wheel 2 wheel drive
�� Tire Width / Diameter: Front 46 / 95mm. Rear 56 / 98mm
�� Tread = Front: 189mm. Rear: 186mm
�� Frame = resin monocoque type
�� Differential gear system = 3 bevel differential
�� Steering tie rod = 2 split
Suspension (both front and rear) = double wishbone
�� Damper = CVA oil damper
�� Gear ratio = 1: 18.3
[Separately required items]
�� Fine Spec 2.4G Electric RC Drive Set
�� 4 AA batteries for transmitter
