TT-02BR Chassis Kit

JAN code:
Item code:
Maker price:
\34,344 JPY
Sale price:
\31,800 JPY
[Upgrade chassis dedicated to off-road racing challengers]
It is a 4WD off-road car chassis. TT-02B. with optional parts to improve driving performance. The drive system uses an XV-02 oil-filled gear differential that allows you to adjust the effectiveness by choosing oil with different hardness. and resin parts are incorporated in the propeller joint to reduce wear. and a universal drive shaft is used for the front and rear. and fully equipped with ball bearings.
The suspension uses a special 3mm thick carbon damper stay to expand the range of settings. In addition. the angle of the high downforce rear wing can be adjusted. By using a long size turnbuckle shaft. the amount of screwing into the adjuster is increased to suppress deflection. It is a chassis kit that allows you to fully enjoy dynamic driving and setting fun with off-road race participation in mind.

[Main equipment parts]
Dedicated carbon damper stay
Aluminum propeller joint (new shape)
ITEM 22049 XV-02/TT-02 Oil-filled gear differential (with dedicated differential joint)
ITEM 54501 TT-02 Aluminum Propeller Shaft
ITEM 54768 06 Hard Coated Aluminum Pinion Gear (17T)
ITEM 54993 TT-02B/DF-03 Aluminum damper set
ITEM 53793 DF-02 Aluminum 2 way rear upright
ITEM 54539 TT-02B Turnbuckle All Set
ITEM 53791 DF-02 Assembly Universal Shaft
ITEM 53880/53881 Large Dish Wheel
ITEM 54211 TRF201 Rear Wing Set
ITEM 54815 TT-02B Reinforced Gear Cover & Lower Suspension Arm
ITEM 54926 TT-02 Lower Deck (Hard Type)
full bearing
Neo Scorcher Body & Wings (Transparent)

[Basic specifications]
Chassis length = 388mm (not including body) Chassis width = 183mm Wheelbase = 258mm Frame = bathtub type Driving system = shaft drive 4WD Differential gear = oil-filled gear differential (with dedicated differential joint) Steering = 3 split tie rod type
Suspension = 4-wheel independent double wishbone Damper = Aluminum cylinder oil damper Gear ratio = 10.71:1 (pinion gear included in kit) Motor sold separately Speed controller = ESC specification (sold separately)

[Items to be purchased separately]
Motor Tires RC mechanism: ESC. 2 channel radio Battery for running. charger Power supply for transmitter

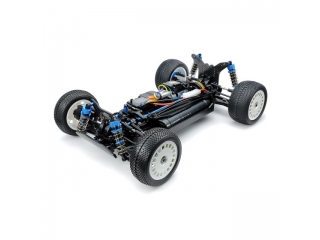

Length = 388mm The photo shows the assembled kit.

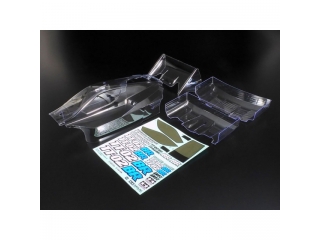

Neo Scorcher body & wings (transparent). with OP.1211 TRF201 rear wing set
* Motors. tires. RC equipment. batteries. etc. are not included in the product.
