MultiCharger X2 PRO

JAN code:
669962442367
Item code:
H44236
Maker price:
\42,680 JPY
Sale price:
\27,160 JPY
Manufacture:
HITEC
Weight:
2,189g
Categories:

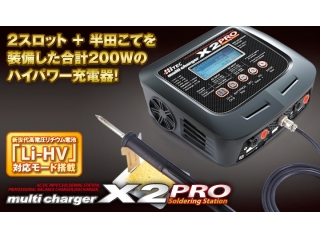

And the charging port of the second throttle total 200W to the front. equipped with a soldering iron dedicated port combat faction high power charger of the user to glad feature enhancement
By distributing the wiring back and forth. you can effectively use the pit space

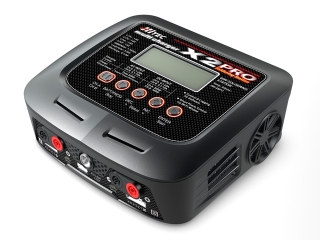

Large LCD screen adoption
It can be used outdoors as well indoors anywhere to be used in the AC / DC corresponding

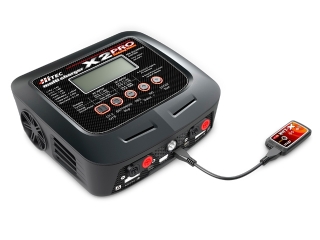

X-Link can be manipulated and monitor of the charger in the smartphone When you connect a WiFi module

Note 1: Li-HV battery is Li-Po voltage higher rated voltage than the batteries: 3.8V / charging completion voltage: This is to become the battery 4.35V. Future for the RC is the emergence plan from each company.
Note: If you charge a conventional Li-po in the Li-HV mode will overcharge therefore please note.


X2 Pro body
Japanese manual
AC power cable
DC power cable
balance connector board (JST-XH) 2 pieces

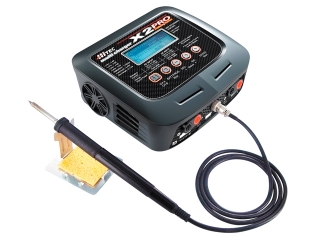

dedicated soldering iron
tip (Standard type)
tip (cutter type)
soldering iron stand
cleaning sponge
One large alligator type code
One XT-60 type code
One Deans type code
Two banana plug cord


Function
Charge. discharge. soldering iron. balance charging and discharging. voltage control. cycle charging and discharging. the battery meter. PC control USB port. various safety functions
Correspondence battery Li-Po. Li-Fe. Li-Ion. Li-HV. Ni-MH. Ni-Cd. PB (lead)
The number of corresponding cell
Li-Po / Li-Fe / Li-Ion / Li-HV: 1 ~ 6 cell. NiMH / Ni-Cd: 1 ~ 15 cell. PB: 2 ~ 20V
Input voltage AC100 ~ 240V / DC11 ~ 20V
Charging current
CH A port 0.1A ~ 20.0A (0~200W AC input at the time of 200W in total and CH B port output)
CH B port 0.1A ~ 10.0A (0~100W AC input at the time of 200W in total with CH A port output)
(DC input at the maximum A port 200W / B port 100W)
Discharge current 0.1A ~ 5.0A
Soldering iron maximum 60W. 200 ~ 450
Dimensions D180 W165 H72mm
Weight 1260g

The maximum power The charge. determined at the time of discharge in the battery terminal voltage current at that time. This will automatically limit the current value if more than the maximum power.
Design. specifications. etc.. you might want to change for product improvement without notice.
