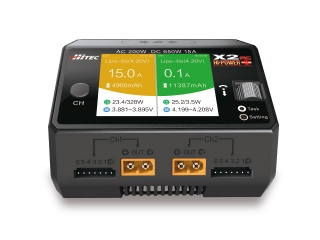

Compact 2 channel output

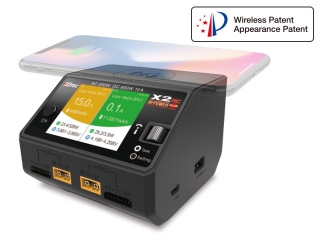

Wireless charging compatible only with putting smartphone

High power AC / DC charger with maximum 650 W at AC input up to 200 W DC input!

Wireless charging function of patented design can be used for iPhone X · 8. Samsung S 8 etc!

From the most advanced circuit design and charging algorithm.
Charging and discharging can be done by detecting abnormalities such as overvoltage. overcurrent. overtemperature etc.!

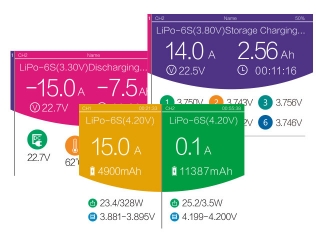

Adopt a 2.8-inch 260.000-color HD screen.
Designed and readily viewable menu can be easily switched to CH1. CH2 and displayed.
Interfaces that can also be displayed simultaneously

�� Features Summary
· Easy setting with high definition color liquid crystal
· Speed ​​operation of dial + push
· Maximum 650 W high power at DC input
· CH1 and CH2 switching display (simultaneous display possible)
· Smartphone wireless charging compatible
· English / Japanese switching
· 3 operation level switching
· 3-stage backlight adjustment


�� Basic Specification
Supported battery
New generation high voltage lithium battery with Li-HV compatible mode installed
Li - HV / Li - Po / Li - Fe / Li - Ion: 1 to 6 cells
Ni - Zn / Ni - cd / Ni - MH: 1 to 16 cells
Smart Battery: 1 to 6 cells
PB: 2 to 24 V Eneloop: 1 to 16 cells

Input voltage
AC 100 / 240V (maximum output 200 W)
DC 6.5 to 30.0 V (maximum output 650 W)

Charging current 0.1 A to 15 A (maximum 650 W)
Discharge current 0.1 A to 3.0 A (maximum 30 W)
USB output 5 V / 2.1 A
Wireless charge up to 5W
Dimension W 108 �� D 105 �� H 76 mm
Weight 572 g


�� Set contents
· X2 HI - POWER AC PLUS body
· AC input cable
· Quick manual
