��Features

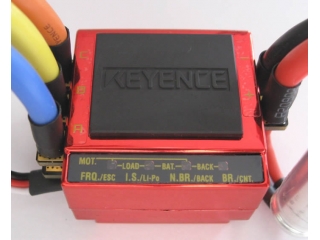

H.T.R.S – Hybrid Thermal Radiated System (Patent Pending)

A special heat-conducting carbon sheet has been formed around the surface of each FET. This sheet absorbs heat from FETs within the the ESC�� then the heat is collectively released outside of the unit using a special ceramic board. This is a KEYENCE original method that uniformly cools all FETs�� and the worlds first revolutionary cooling system that demonstrates a heat dissipation effect surpassing conventional cooling fans and heat sinks.

Due to there being no need for aluminum heat sinks and cooling fans for multi-layered FET boards�� a significant reduction in size has been achieved. The TACHYON boasts the worlds smallest class for sensor method speed controllers.

Provides the worlds lowest ON resistance levels for brushless amplifiers

Its small chassis has been loaded with 36 (the most for a brushless amplifier) of the latest high-performance Power MOSFETs. Supports REVERSE mode while also achieving competition class output performance.

No PC necessary! Possible to change settings with just the buttons on the ESC main unit (Free Operation System)

Pre-set with 3 types of programs for each category.
A wide variety of settings and adjustment functions can be conducted using only the buttons on the ESC main unit�� including Disable Reverse�� Drive Frequency�� Initial Speed�� and Neutral Brake Power.

Utilizes a high-density 12 gauge cable with 1��530 core wires

Soft and flexible�� despite being an extra-thick 12 gauge cable�� making machine installation easy.

Compatible with a wide variety of batteries including Ni-cd�� Ni-MH�� Li-Po�� and Li-Fe

The rotation direction of the motor can be set arbitrarily

A worry-free design with no limits on compatible motors


��Specifications


Power supply

4.8 V to 11.4V (All battery types)



Max. continuous/instant current

Up to max. current produced by battery



ON resistance value

0.24 m�� (FET standard value)



Compatible motors

Unrestricted



Dimensions

31 (W) x 30 (D) x 19 (H) (excluding projection)



Weight (ESC main unit)

35.0 g



Regulator for receiver/servo

6 V�� 3 A Output

��List of Accessories


Body

1



Instruction Manual

1



Decal Stickers

1



Double Sided Tape for Body Mounting

2



Shrink Tubes for Silicon Cables

2
