Comical Grass Hopper (WR - 02CB chassis)

JAN code:
4950344586622
Item code:
58662
Maker price:
\15,120 JPY
Sale price:
\13,600 JPY
Manufacture:
TAMIYA
Weight:
3,000g
Categories:
EP OFF ROAD KIT/EP OTHER KIT

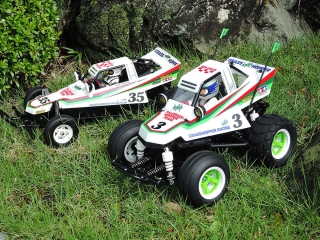

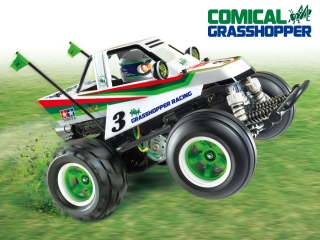

Total length = 356 mm The photograph shows the kit assembled and painted

Popular Grasshopper turns into a comical style!
Since its introduction in 1984. 2 WD buggy. Grasshopper. which attracts many RC fans.
It is an assembling kit of an electric radio control car which pretty deformed this glass hopper.
Shrinking the glass hopper back and forth and emphasizing the cockpit. the body of the gentle form is made of light and durable polycarbonate.
The sticker for marking and the mask seals convenient for separating the windows are also attached and the paint can be finished easily.

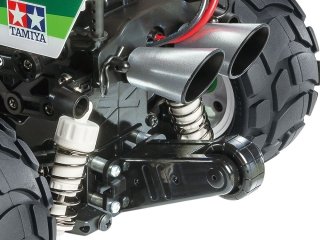

Moreover. I am uploading more comics with two antenna pole which makes me reminiscent of the antennae of the grasshopper and two megaphone muffler which raises the power when seeing from behind.
The chassis is rear wheel drive WR - 02CB. From paved roads to uneven offroads. you can play anywhere. just grasp the throttle lever for the transmitter. you can also run wheelie lifting the front wheels.

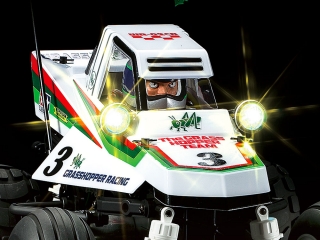

In addition. you can incorporate optional LEDs to light the lights. or you can enjoy the performance upgrading and setting with optional parts for WR - 02 which are plentifully arranged.

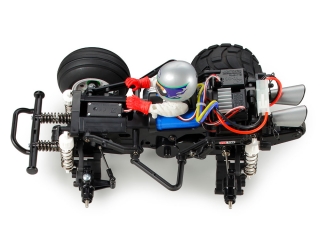

WR - 02CB chassis with rear wheel drive packing the fun to run
The chassis adopted WR - 02CB based on rear wheel drive WR - 02.
By devising the mounting position of the motor and the battery. it is easy to run. you can easily make it a wheelie. and you can choose a place to run from on-road to off-road.
Also. the gear case. which is a little troublesome to assemble. is also a point that is completed with the motor attached.
Around the legs you can run a long suspension arm and a CVA oil damper and run safely on rough off-roads.
In addition. side chassis side guards set a side guard that protects the motor from falls by any chance. and brings out the buggys appearance.
Wheelie bar attached to the rear not only prevents falling when you do a wheelie. it can also adjust the wheeling by changing the mounting angle.
The combination of green and white eye-catching wheel has a two-piece structure. which is helping to create a millet run.
In addition. the tire has a highly straight pattern of rib pattern at the front and a round block with grip on the rear.
A round shaped unique bubble tire will make the comical mood even more exciting.

Basic Specification
Overall length 356 mm. full width 244 mm. total height 195 mm
Wheel base 170mm
Car weight = approx. 1260 g (RC mecha · battery not included)
Motor = 540 type
Drive system = rear wheel two wheel drive
Tire Width / Diameter = Front 46 / 95mm. Rear 56 / 98mm
Tread = front: 189 mm. rear: 186 mm
Frame = resin monocoque type
Differential gear method = 3 bevel diff
Steering Tie Rod = 2 split
Suspension (both front and rear) = Double wishbone
Damper = CVA oil damper
Gear ratio = 1: 18.3

What you need separately
FineSpec 2.4G electric RC drive set
Four AA size batteries for transmitter
